Part Details | BLANK PANEL
5975-00-086-1443 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: H6685, PA1111MG, PA1111HG, 5975-00-086-1443, 00-086-1443, 5975000861443, 000861443
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 29, 1967 | 00-086-1443 | 15195 ( PANEL, BLANK ) |

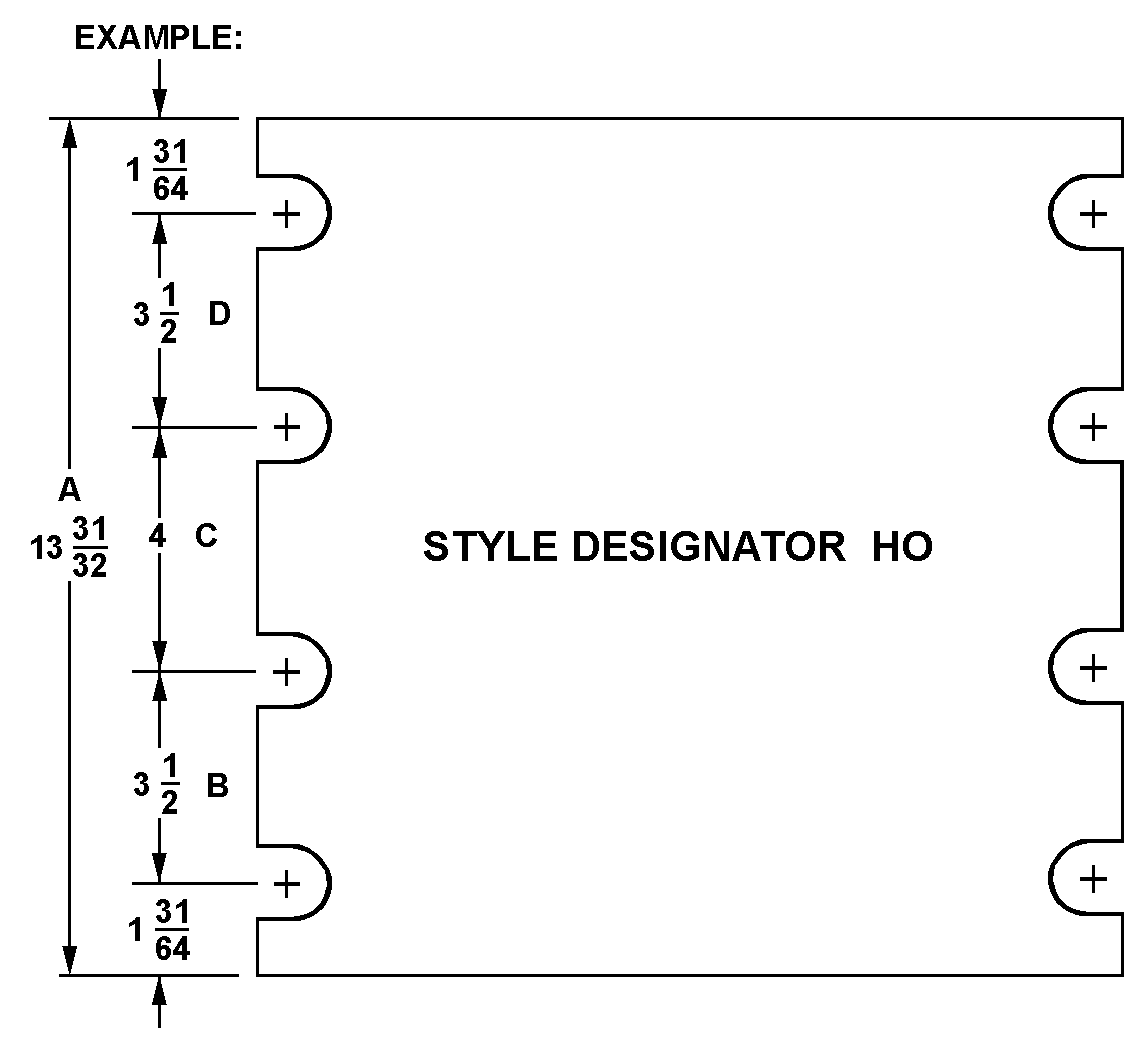

REFERENCE DRAWINGS & PICTURES
OPEN SLOT
BLANK, PLAIN DESIGN
Cross Reference | NSN 5975-00-086-1443
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H6685 | 74156 | ANGO ELECTRONICS CORPORATIONDBA PAR METAL PRODUCTS |
| PA1111MG | 71218 | BUD INDUSTRIES, INC. |
| PA1111HG | 71218 | BUD INDUSTRIES, INC. |
Technical Data | NSN 5975-00-086-1443
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 19.250 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.125 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 3003 |
| COLOR | GRAY, LIGHT |
| STANDARD MOUNTING PATTERN DESIGNATOR | OPEN SLOT |
| SPECIAL FEATURES | TEMPER H14 |
