5975-00-089-7694 A tray or racklike item designed to provide a supporting surface to which electrical/electronic equipment may be secured when installed in aircraft, vehicles, or other types of mobile equipment. It may be equipped with shock or vibration isolation devices and/or wires, cables, terminal boards, connectors, etc. Excludes BASE, ELECTRICAL EQUIPMENT RACK and MOUNT, RESILIENT. See also RACK, ELECTRICAL EQUIPMENT.
Alternate Parts: MT3823GRC, 5975-00-089-7694, 00-089-7694, 5975000897694, 000897694
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 18, 1967 | 00-089-7694 | 29923 ( MOUNTING BASE, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

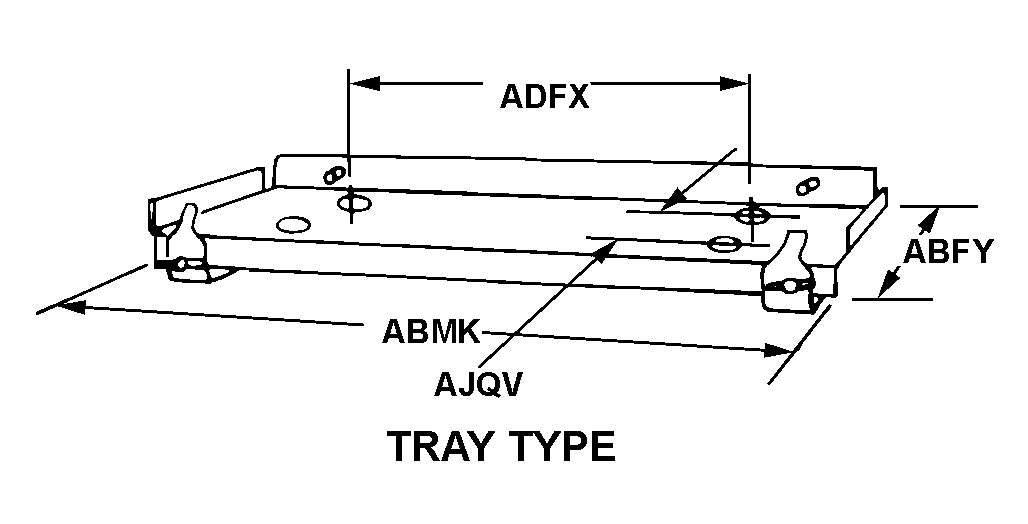

TRAY TYPE
Cross Reference | NSN 5975-00-089-7694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MT3823GRC | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
Technical Data | NSN 5975-00-089-7694
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TRAY TYPE |
| OVERALL DEPTH | 10.000 INCHES NOMINAL |
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 10.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG DEPTH | 9.156 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ENAMEL |
| COLOR | OLIVE DRAB |
| MOUNTING PROVISION | CLAMP |
| VIBRATION MOUNT TYPE | CUP |
| SPECIAL FEATURES | INCL CIRCUIT BREAKER SWITCH AND SWITCH BOX |
| SUPPLEMENTARY FEATURES | PREWIRED AND GROUNDING PROVISION |
| FSC APPLICATION DATA | COMMUNICATIONS SECURITY EQUIPMENT AND COMPONENTS |
