Part Details | ELECTRICAL BOX CONNECTOR
5975-00-094-2665 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Alternate Parts: CH125, HUB125, 373, A3094037213, A3094037-213, A3094037, 5975-00-094-2665, 00-094-2665, 5975000942665, 000942665
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 29, 1972 | 00-094-2665 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |

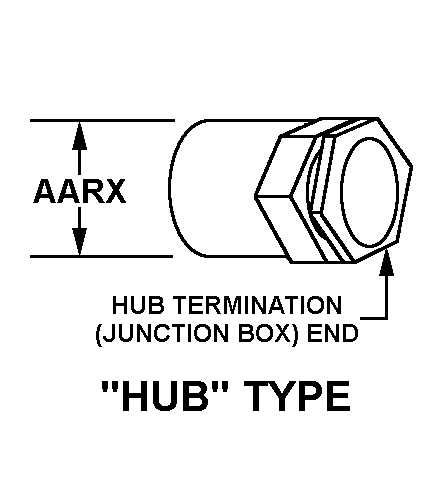

REFERENCE DRAWINGS & PICTURES
HUB TYPE
Cross Reference | NSN 5975-00-094-2665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CH125 | 83879 | EGS ELECTRIC CO LLC |
| HUB125 | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| 373 | 56501 | THOMAS & BETTS CORPORATION |
| A3094037-213 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| A3094037 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-094-2665
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HUB TYPE |
| MATERIAL | IRON MALLEABLE |
| FURNISHED ITEMS | NIPPLE |
| SUPPLEMENTARY FEATURES | END ITEM MHU-173/E MUNITIONS LIFT TRAILER |
