Part Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-457-0602 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Alternate Parts: 57622, A009057622, 57622, SAW4570602, SAW-4570602, 5977-00-457-0602, 00-457-0602, 5977004570602, 004570602
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 28, 1969 | 00-457-0602 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
REFERENCE DRAWINGS & PICTURES

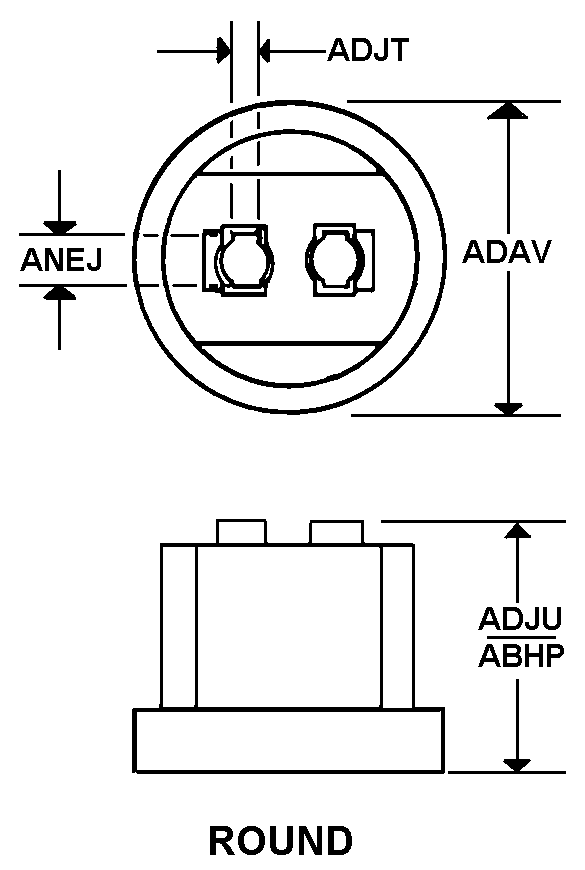

ROUND
Cross Reference | NSN 5977-00-457-0602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 57622 | 35510 | PRESTOLITE ELECTRIC INC |
| A009057622 | 35510 | PRESTOLITE ELECTRIC INC |
| 57622 | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
| SAW-4570602 | 1Y875 | SOUTHERN AUTOMOTIVE WHOLESALERS,INC. |
Technical Data | NSN 5977-00-457-0602
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| INSIDE WIDTH | 0.312 INCHES NOMINAL |
| INSIDE LENGTH | 1.375 INCHES NOMINAL |
| INSIDE THICKNESS | 0.312 INCHES NOMINAL |
| MATERIAL AND LOCATION | PLASTIC BOX |
| CONTACT END BEVEL | NOT INCLUDED |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | DK ANY ACCEPTABLE |
| MOUNTING FACILITY QUANTITY | 3 |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | HELICAL COMPRESSION |
| BRUSH SPRING ADJUSTABILITY | NONADJUSTABLE |
| BRUSH PRESSURE SPRING | NOT INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 2 |
