Part Details | ELECTRICAL CONTACT BRUSH
5977-00-512-6800 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Alternate Parts: 701A671P1, 5977-00-512-6800, 00-512-6800, 5977005126800, 005126800
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-512-6800 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR COMMUTATOR

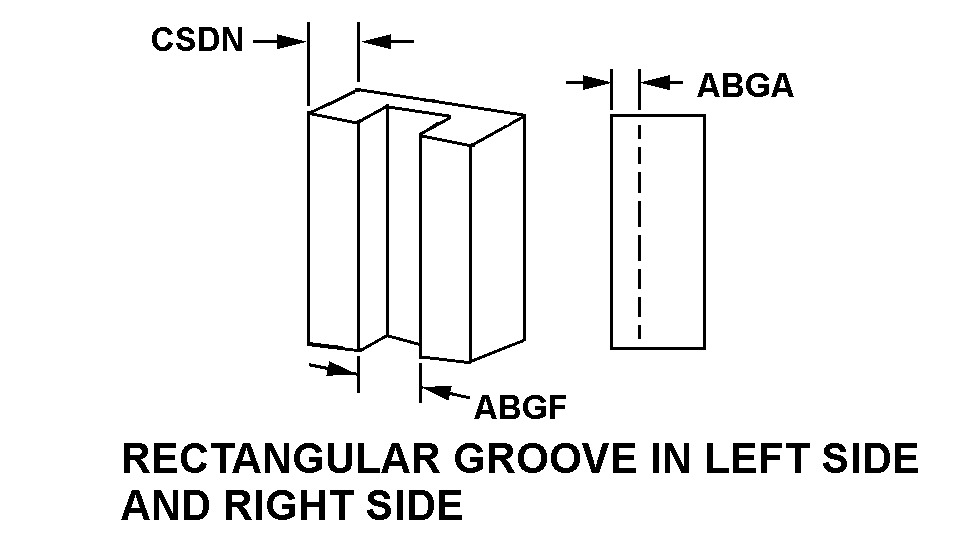

RECTANGULAR GROOVE IN LEFT AND RIGHT SIDE
FLAT
CONCAVE ON BEVEL
PAIRED
Cross Reference | NSN 5977-00-512-6800
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 701A671P1 | 12532 | GENERAL ELECTRIC COMOTOR BUSINESS GROUP |
Technical Data | NSN 5977-00-512-6800
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PAIRED |
| MATERIAL | METAL GRAPHITE |
| MATERIAL DOCUMENT AND CLASSIFICATION | GENERAL ELECTRIC CO,GR T464 MFR REF SINGLE MATERIAL RESPONSE |
| BODY STYLE | RECTANGULAR COMMUTATOR |
| WIDTH | 1.117 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| THICKNESS | 0.374 INCHES NOMINAL |
| LENGTH | 1.250 INCHES NOMINAL |
| CONTACT FACE STYLE | CONCAVE ON BEVEL |
| RADIUS | 1.313 INCHES NOMINAL |
| BEVEL ANGLE | 30.0 DEGREES NOMINAL |
| TOP STYLE | 6A FLAT |
| ANGLE | 30.0 DEGREES NOMINAL |
| BASIC SHAPE STYLE | RECTANGULAR GROOVE IN LEFT AND RIGHT SIDE |
| GROOVE DEPTH | 0.031 INCHES NOMINAL |
| GROOVE WIDTH | 0.031 INCHES NOMINAL |
| CLIP TYPE | NEMA HAMMER TYPE EXTENDED A |
| SHUNT INSULATION PROVISION AND QUANTITY | 2 UNINSULATED |
| TERMINAL TYPE AND QUANTITY | 1 YOKE W/HOLE |
| TERMINAL HOLE DIAMETER | 0.203 INCHES NOMINAL |
| SPECIAL FEATURES | TERMINAL HAS 60 DEG BEND |
