Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-052-8573 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: RFB32441, RFB3244-1, 133405224, 13-34-05224, 1536128, 153-6128, 580R054H01, 1536128, 153-6128, 1536128, 153-6128, 5985-00-052-8573, 00-052-8573, 5985000528573, 000528573
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 18, 1967 | 00-052-8573 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

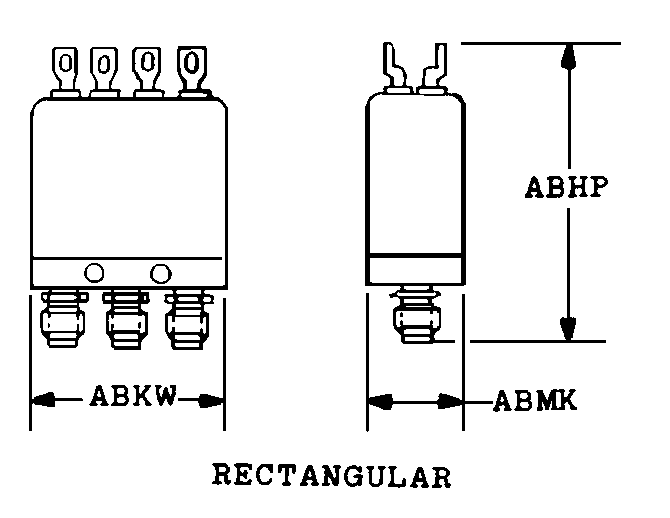

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5985-00-052-8573
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RFB3244-1 | 02289 | HI-G CO INCSUB OF NYTRONICS INC |
| 13-34-05224 | 25693 | MEGGITT SAFETY SYSTEMS, INC. |
| 153-6128 | 04221 | MIDLAND-ROSS CORPMIDTEX DIV |
| 580R054H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
| 153-6128 | 58614 | TE CONNECTIVITY CORPORATIONDBA CII TECHNOLOGIES |
| 153-6128 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5985-00-052-8573
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.06 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 20.0 MINIMUM AND 30.0 MAXIMUM |
| RF MAXIMUM VOLTAGE RATING | 1.0 KILOVOLTS PEAK |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 2 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD AND 2 TAB, SOLDER LUG |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 15.590 INCHES MINIMUM AND 15.670 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.206 INCHES MINIMUM AND 1.226 INCHES MAXIMUM |
| OVERALL WIDTH | 0.400 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 97942-580R054 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| OPERATING TEMP RANGE | -54.0 TO +95.0 DEG CELSIUS |
