Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-056-6771 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 20CSA3101, 20CSA3-1-01, 2329B0067, 2329B0067, 5985-00-056-6771, 00-056-6771, 5985000566771, 000566771
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-056-6771 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

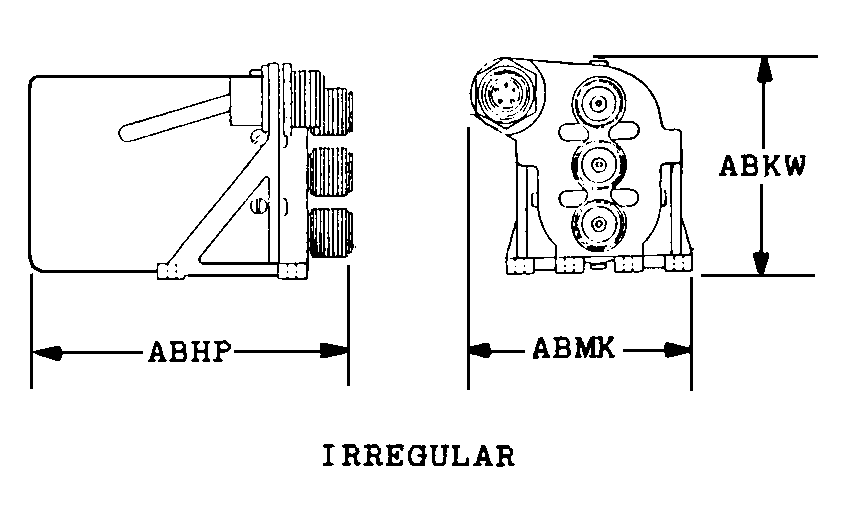

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-056-6771
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20CSA3-1-01 | 94375 | AUTOMATIC CONNECTOR |
| 2329B0067 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 2329B0067 | 87557 | LOCKHEED CORPLOCKHEED ELECTRONICS CO INC |
Technical Data | NSN 5985-00-056-6771
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| RF MAXIMUM VOLTAGE RATING | 28.0 VOLTS RMS |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 3 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 WIRE HOOK AND 4 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 2.547 INCHES NOMINAL |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE |
| OPERATING TEMP RANGE | +0.0 TO +70.0 DEG CELSIUS |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | SURFACE SILVER |
