Part Details | ANTENNA STOP
5985-00-058-7685 An item designed to check the movement or action of an antenna. Do not use if a more specific item name appears in this index.
Alternate Parts: G6771023, G6771-023, 5985-00-058-7685, 00-058-7685, 5985000587685, 000587685
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 13, 1967 | 00-058-7685 | 00852 ( STOP, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

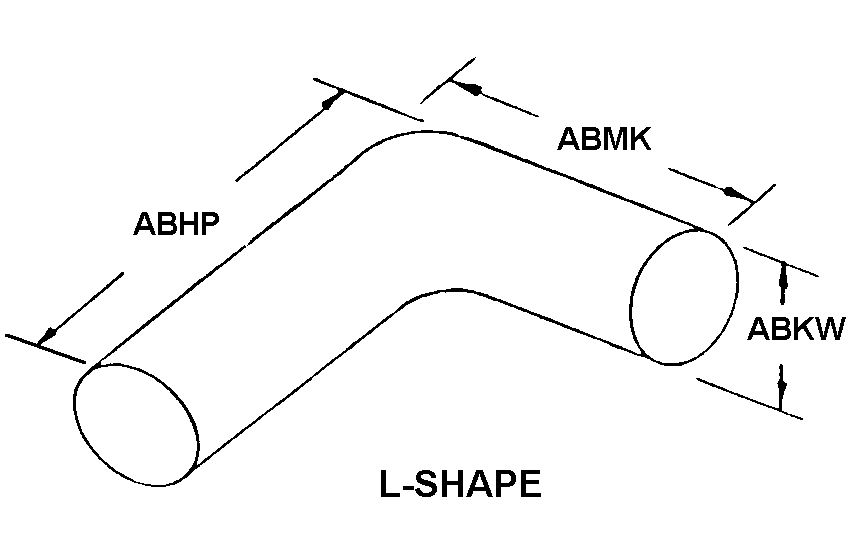

L-SHAPE
Cross Reference | NSN 5985-00-058-7685
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G6771-023 | 81413 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION I |
Technical Data | NSN 5985-00-058-7685
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE DIAMETER | 0.199 INCHES NOMINAL |
| BASIC SHAPE STYLE | L-SHAPE |
| OVERALL LENGTH | 1.040 INCHES NOMINAL |
| OVERALL HEIGHT | 0.580 INCHES NOMINAL |
| OVERALL WIDTH | 0.780 INCHES NOMINAL |
