5985-00-059-8252 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 319111313, 319-11131-3, 3190111313, 319-011131-3, 3001113128VDC, 300-11131-28VDC, 3001113128DC, 300-11131-28DC, CS300, 3190111313, 319-011131-3, 10054316, 20141, 5985-00-059-8252, 00-059-8252, 5985000598252, 000598252
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-059-8252 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

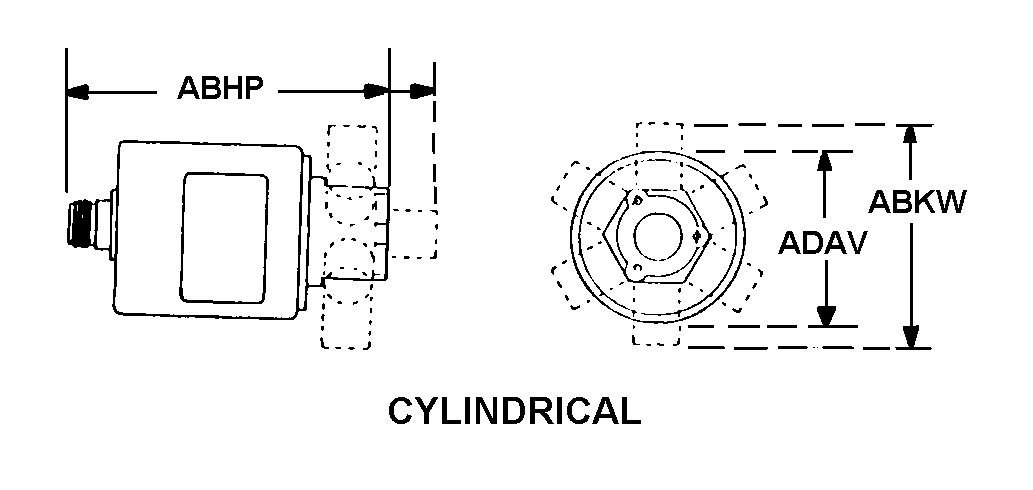

CYLINDRICAL
Cross Reference | NSN 5985-00-059-8252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 319-11131-3 | 62165 | ARROWSMITH SHELBURNE INC |
| 319-011131-3 | 62165 | ARROWSMITH SHELBURNE INC |
| 300-11131-28VDC | 62165 | ARROWSMITH SHELBURNE INC |
| 300-11131-28DC | 62165 | ARROWSMITH SHELBURNE INC |
| CS300 | 62165 | ARROWSMITH SHELBURNE INC |
| 319-011131-3 | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
| 10054316 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 20141 | 10412 | WHITTAKER CORPWHITTAKER ELECTRONIC SYSTEMS DIV |
Technical Data | NSN 5985-00-059-8252
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.346 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 26.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | MALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | CYLINDRICAL |
| OVERALL LENGTH | 2.376 INCHES NOMINAL |
| OVERALL DIAMETER | 1.438 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BASE |
| OPERATING TEMP RANGE | -55.0 TO +85.0 DEG CELSIUS |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | BODY SURFACE SILVER |
