Part Details | WAVEGUIDE SEAL
5985-00-064-5538 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Alternate Parts: 9057820, 9057820, 9057820, 9057820, 9057820, 5985-00-064-5538, 00-064-5538, 5985000645538, 000645538
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 18, 1966 | 00-064-5538 | 02477 ( SEAL, WAVEGUIDE ) |
REFERENCE DRAWINGS & PICTURES

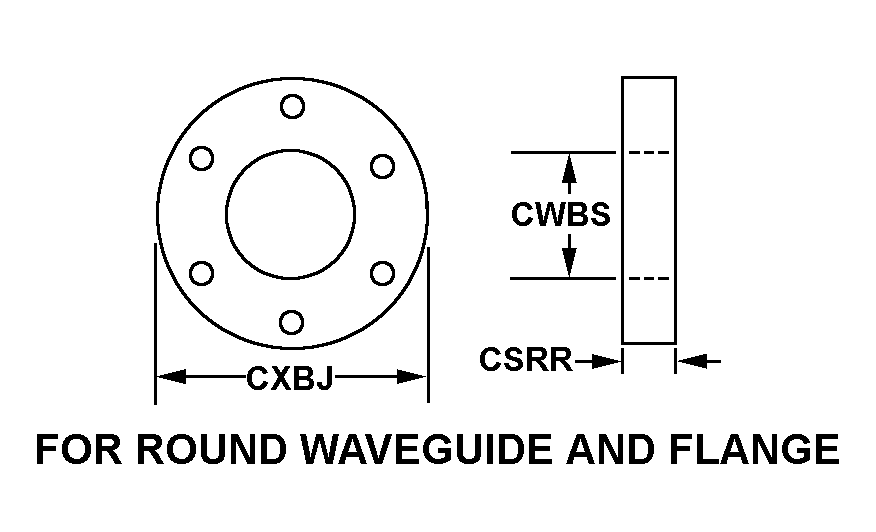

FOR ROUND WAVEGUIDE AND FLANGE
Cross Reference | NSN 5985-00-064-5538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9057820 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
| 9057820 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 9057820 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| 9057820 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 9057820 | 00416 | VICTOR MICROWAVE, INC. |
Technical Data | NSN 5985-00-064-5538
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FOR ROUND WAVEGUIDE AND FLANGE |
| SEAL THICKNESS | 0.635 INCHES MINIMUM AND 0.637 INCHES MAXIMUM |
| SEAL INSIDE DIAMETER | 1.037 INCHES MINIMUM AND 1.039 INCHES MAXIMUM |
| SEAL OUTSIDE DIAMETER | 2.250 INCHES MINIMUM AND 2.251 INCHES MAXIMUM |
| SPECIAL FEATURES | 63.0 IN. MICROINCH FINISH O/A; CENTER HOLE 0.875 IN. LG X 0.541 IN. W |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
