Part Details | FIXED ATTENUATOR
5985-00-066-6829 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: T154, 5985-00-066-6829, 00-066-6829, 5985000666829, 000666829
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-066-6829 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

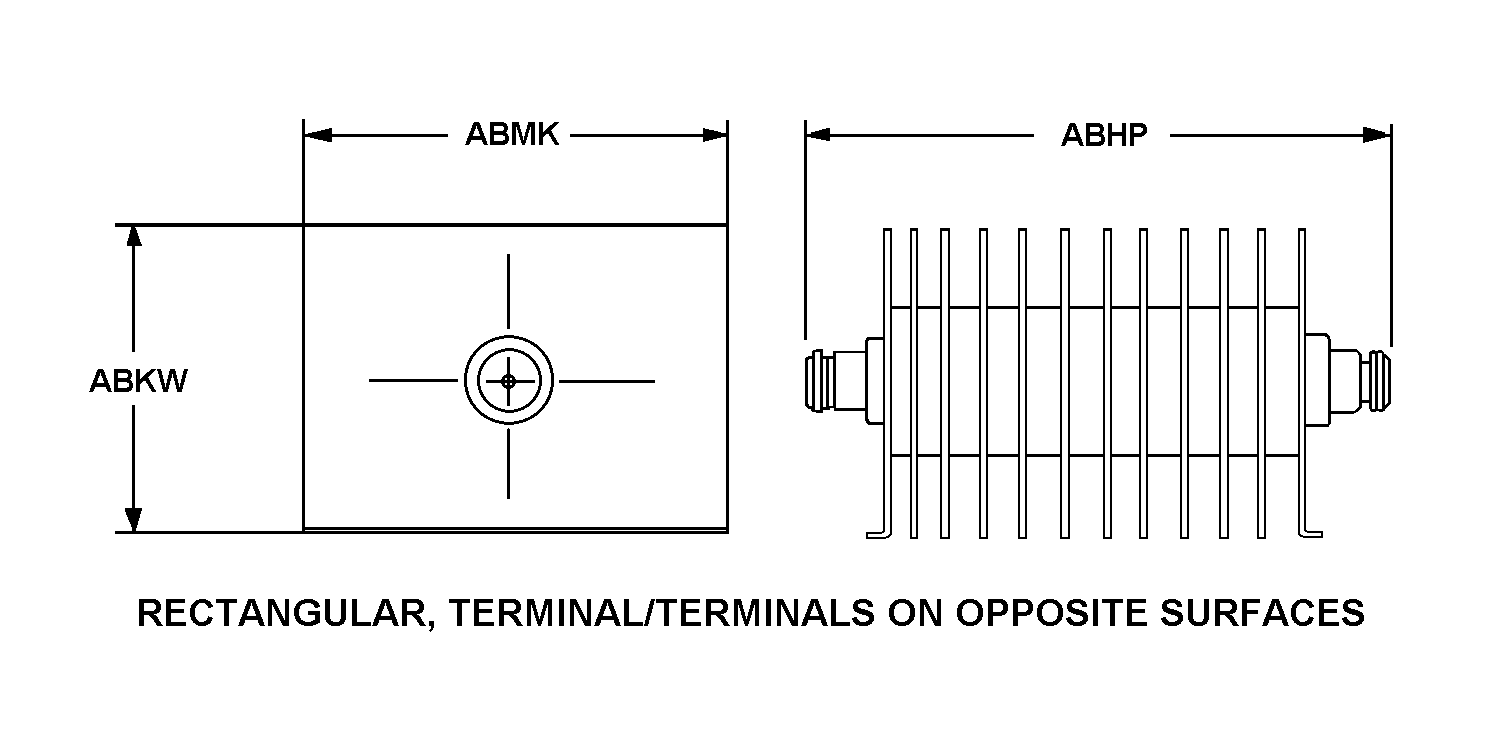

RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES

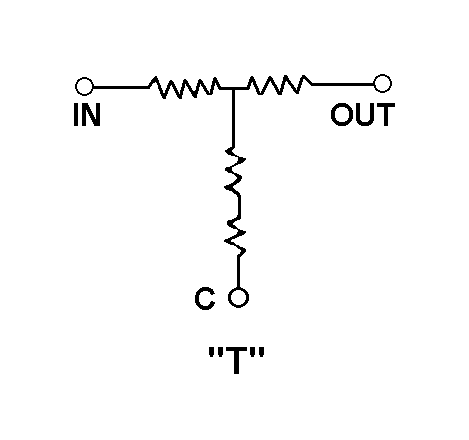

T
Cross Reference | NSN 5985-00-066-6829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T154 | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
Technical Data | NSN 5985-00-066-6829
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |
| SCHEMATIC DIAGRAM DESIGNATOR | "T" |
| INPUT IMPEDANCE RATING IN OHMS | 500.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 500.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 20.000 KILOHERTZ MAXIMUM |
| RF SIGNAL ATTENUATION IN DECIBELS | 100.0 |
| ATTENUATION ACCURACY IN DECIBELS | M2.00/P2.00 |
| POWER RATING | 1.0 WATTS AVERAGE |
| BODY STYLE | RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OVERALL HEIGHT | 1.344 INCHES NOMINAL |
| OVERALL WIDTH | 1.531 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BODY SURFACE TREATMENT | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 5 TAB, SOLDER LUG |
| CONNECTION TYPE PER FUNCTION | MALE |
| MOUNTING METHOD | FLANGE W/MOUNTING HOLE |
| MOUNTING HOLE/STUD QUANTITY | 4 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.438 INCHES NOMINAL |
