Part Details | FIXED ATTENUATOR
5985-00-072-1225 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: 63G4585, HM10N, 5985-00-072-1225, 00-072-1225, 5985000721225, 000721225
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-072-1225 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

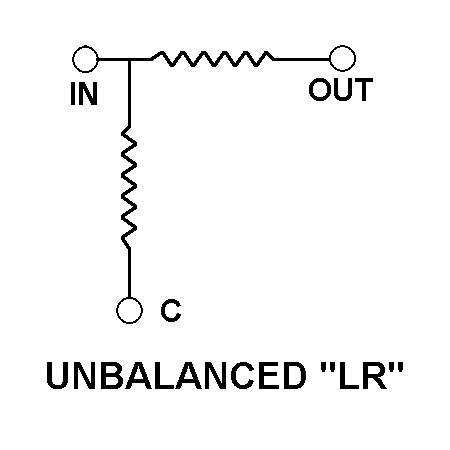

UNBALANCED "LR"
Cross Reference | NSN 5985-00-072-1225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63G4585 | 20284 | AIMTRON SYSTEMS LLCDBA TARGET |
| HM10N | 00929 | MICROLAB/FXR |
Technical Data | NSN 5985-00-072-1225
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| SCHEMATIC DIAGRAM DESIGNATOR | UNBALANCED "LR" |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 5.000 GIGAHERTZ MAXIMUM |
| RF SIGNAL ATTENUATION IN DECIBELS | 10.0 |
| ATTENUATION ACCURACY IN DECIBELS | M0.10/P0.10 |
| POWER RATING | 5.0 WATTS AVERAGE |
| OVERALL LENGTH | 2.587 INCHES NOMINAL |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.937 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 CONNECTOR |
| MOUNTING METHOD | TERMINAL |
| FSC APPLICATION DATA | RESISTIVE TYPE |
