Part Details | AUTOMOTIVE DIRECTIONAL SIGNAL LIGHT CONTROL
6220-00-928-6163 An item which, when manually actuated, completes, interrupts, or changes the connections in the electrical circuit to control the operation of the directional signal lights on an automotive vehicle. It may include flasher mechanism.
Alternate Parts: 943764, 11613632, D8800, 116136321, 11613632-1, 6220-00-928-6163, 00-928-6163, 6220009286163, 009286163
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | AUG 26, 1966 | 00-928-6163 | 06106 ( CONTROL, DIRECTIONAL SIGNAL LIGHT, AUTOMOTIVE ) |
REFERENCE DRAWINGS & PICTURES

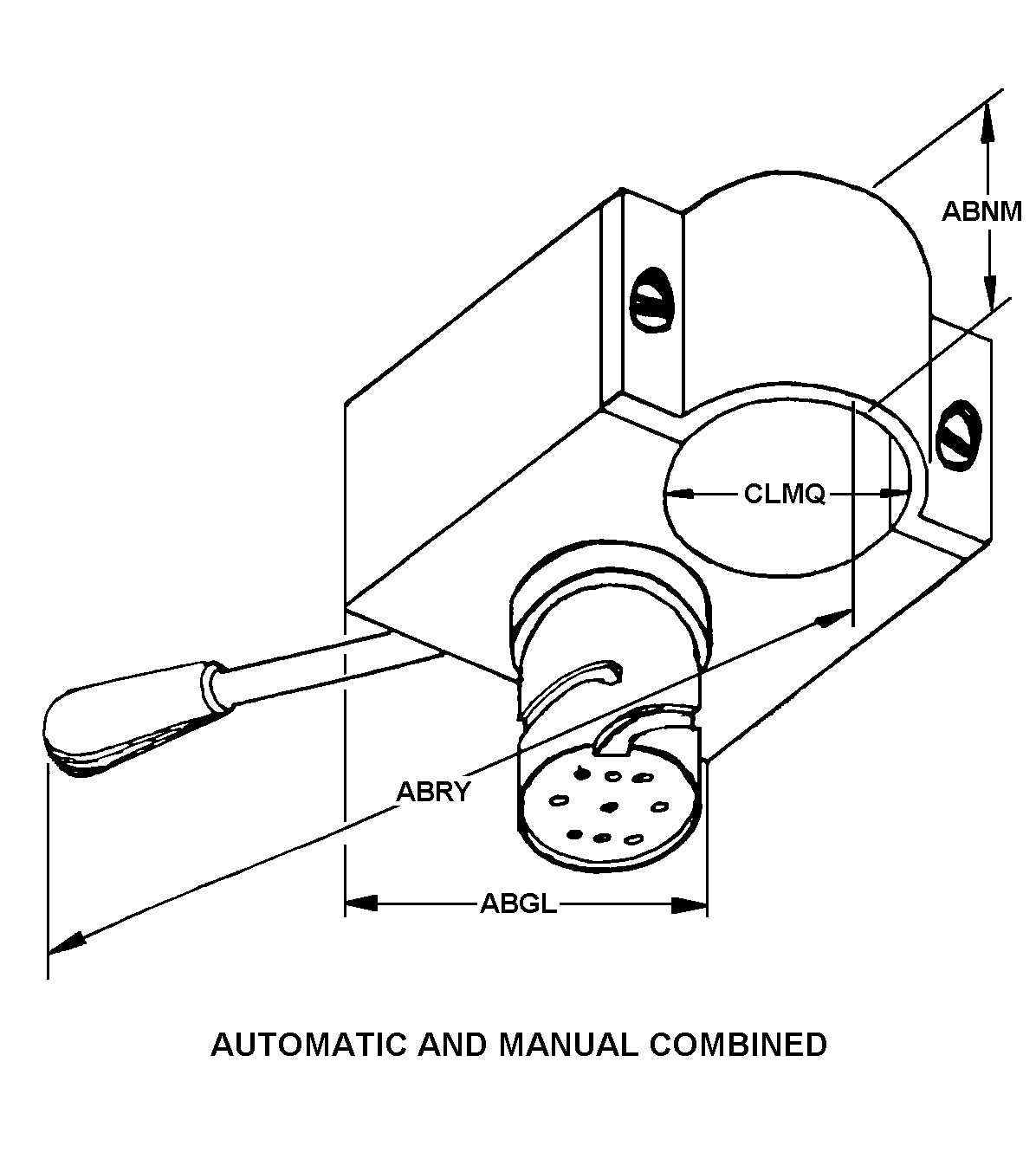

AUTOMATIC AND MANUAL COMBINED
Cross Reference | NSN 6220-00-928-6163
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 943764 | 34623 | AM GENERAL LLC |
| 11613632 | 34623 | AM GENERAL LLC |
| D8800 | 5A910 | ELC INDUSTRIES CORP.DBA AURORA CORD & CABLE COMPANY |
| 11613632-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 6220-00-928-6163
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AUTOMATIC AND MANUAL COMBINED |
| WIDTH | 2.500 INCHES NOMINAL |
| THICKNESS | 2.938 INCHES NOMINAL |
| LENGTH | 9.000 INCHES NOMINAL |
| INCLOSURE MATERIAL | ALUMINUM ALLOY |
| INCLOSURE SURFACE TREATMENT | ENAMEL |
| OPERATING FUNCTION AND METHOD | ACTUATION LEVER AND DEACTUATION LEVER |
| FUNCTIONING SIGNAL METHOD | INDICATOR LIGHTS |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 24.0 DC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 ADJUSTABLE CLAMP |
| FEATURES PROVIDED | FLASHER UNIT |
| SPECIAL FEATURES | CONNECTOR,RECEPTACLE; 1 POSITION LOCK-IN |
