Part Details | INCANDESCENT LAMP
6240-00-959-6506 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: DFR, DFR, DFR, 6240-00-959-6506, 00-959-6506, 6240009596506, 009596506
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1961 | 00-959-6506 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

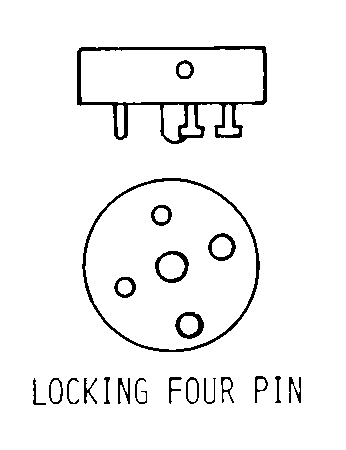

LOCKING FOUR PIN
T (TUBULAR)
Cross Reference | NSN 6240-00-959-6506
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DFR | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| DFR | 08807 | GENERAL ELECTRIC COPHOTO LAMP DEPT |
| DFR | 88204 | GTE PRODUCTS CORPSYLVANIA MINIATURE LIGHTING DIV |
Technical Data | NSN 6240-00-959-6506
| Characteristic | Specifications |
|---|---|
| BASE STYLE | LOCKING FOUR PIN |
| BULB STYLE | T (TUBULAR) |
| BULB DESIGNATOR | T-12 |
| OVERALL LENGTH | 3.875 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | OPAQUE END |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | C-13D |
| WATTAGE RATING | 500.000 WATTS |
| VOLTAGE RATING | 118.000 VOLTS NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 25.0 |
| BURNING POSITION | BASE DOWN |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| COLOR TEMP IN DEG KELVIN | 3250.0 |
| LIGHT CENTER LENGTH | 1.750 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80204-DFR MANUFACTURERS STANDARD |
