Part Details | INCANDESCENT LAMP
6240-00-995-9887 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: 60ACLE27115V, 60ACLE27115, 6240-00-995-9887, 00-995-9887, 6240009959887, 009959887
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1962 | 00-995-9887 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

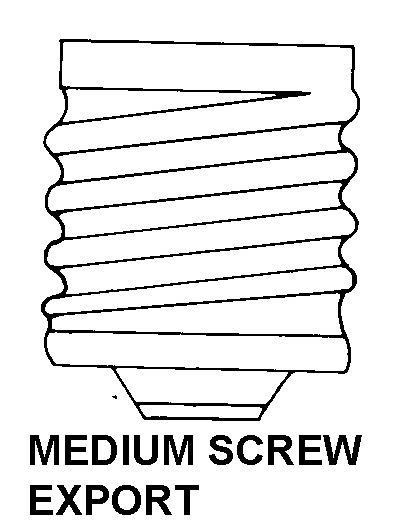

MEDIUM SCREW EXPORT
A (ARBITRARY DESIGNATION)
Cross Reference | NSN 6240-00-995-9887
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60ACLE27115V | 08805 | GENERAL ELECTRIC COMPANYDBA GE |
| 60ACLE27115 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 6240-00-995-9887
| Characteristic | Specifications |
|---|---|
| BASE STYLE | MEDIUM SCREW EXPORT |
| BULB STYLE | A (ARBITRARY DESIGNATION) |
| BULB DESIGNATOR | A-19 |
| OVERALL LENGTH | 4.438 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILAMENT DESIGNATION | CC-6 |
| WATTAGE RATING | 60.000 WATTS |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 1000.0 |
| BURNING POSITION | |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
