Part Details | OTOSCOPE AND OPHTHALMOSCOPE SET
6515-00-550-7199
Alternate Parts: GG000770, 98060, 98060, 6515-00-550-7199, 00-550-7199, 6515005507199, 005507199
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 01, 1963 | 00-550-7199 | 14867 ( OTOSCOPE AND OPHTHALMOSCOPE SET ) |
REFERENCE DRAWINGS & PICTURES
MIDGET FLANGE
MIDGET FLANGE

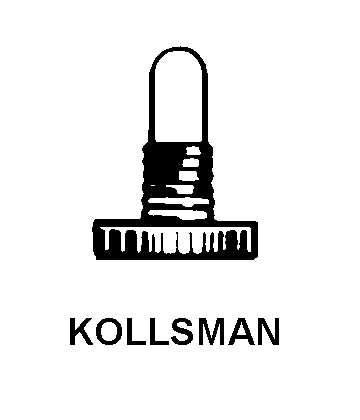

KOLLSMAN
Cross Reference | NSN 6515-00-550-7199
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GG000770 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 98060 | 64475 | WELCH ALLYN HOLDINGS, INC. |
| 98060 | 05CJ3 | WELCH ALLYN, INC. |
Technical Data | NSN 6515-00-550-7199
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | ELECTRICAL |
| POWER SOURCE | BATTERY |
| BATTERY HANDLE SIZE | MEDIUM |
| OTOSCOPE HEAD TYPE | OPEN |
| LAMPHOLDER QUANTITY | 1 |
| LAMP QUANTITY | 1 |
| LAMP VOLTAGE RATING IN VOLTS | 2.5 |
| LAMP WATTAGE RATING IN WATTS | 0.741 |
| LAMP CURRENT RATING | 0.4 AMPERES |
| LAMP BULB SIZE DESIGNATOR | G-31 |
| LAMP BASE STYLE | 2A MIDGET FLANGE |
| LAMP INDUSTRY NUMBER | 14 |
| LAMP TRANSPARENCY | B ANY ACCEPTABLE |
| CARRYING CASE | PROVIDED |
| SPECIAL MARKINGS | MARKED W/LETTERS /US/ |
| SPECULUM QUANTITY | A1$$A1$$A1$$A1 |
| SPECULUM TYPE | AURAL AND AURAL AND AURAL AND NASAL |
| SPECULUM MATERIAL | NYLON |
| SPECULUM SIZE | TS ANY ACCEPTABLE AND TN ANY ACCEPTABLE AND TJ ANY ACCEPTABLE AND ANY ACCEPTABLE |
| OPHTHALMOSCOPE HEAD LAMPHOLDER QUANTITY | 1 |
| OPHTHALMOSCOPE HEAD LAMP QUANTITY | 1 |
| OPHTHALMOSCOPE HEAD LAMP VOLTAGE RATING IN VOLTS | 2.5 |
| OPHTHALMOSCOPE HEAD LAMP CURRENT RATING | 0.4 AMPERES |
| OPHTHALMOSCOPE HEAD LAMP BULB SIZE DESIGNATOR | T-1 |
| OPHTHALMOSCOPE HEAD LAMP BASE STYLE | 8 KOLLSMAN |
| OPHTHALMOSCOPE HEAD LAMP TRANSPARENCY | B ANY ACCEPTABLE |
| OPHTHALMOSCOPE HEAD LENS NEGATIVE RANGE IN DIOPTERS | M20.0/M1.0 |
| OPHTHALMOSCOPE HEAD LENS POSITIVE RANGE IN DIOPTERS | P0.5/P20.0 |
| OPHTHALMOSCOPE HEAD LENS ZERO APERTURE | INCLUDED |
| FURNISHED ITEMS AND QUANTITY | LAMP,OTOSCOPE HEAD,2,LAMP,OPHTHALMOSCOPE HEAD,2 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | OTOSCOPE AND OPHTHALMOSCOPE SET C/O SMALL MEDIUM AND LGE SPECULUMS |
