Part Details | SPECTACLE FRAME
6540-01-145-5209
Alternate Parts: HEBFD482050, 6540-01-145-5209, 01-145-5209, 6540011455209, 011455209
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | JAN 13, 1983 | 01-145-5209 | 13688 ( FRAME, SPECTACLE ) |
REFERENCE DRAWINGS & PICTURES

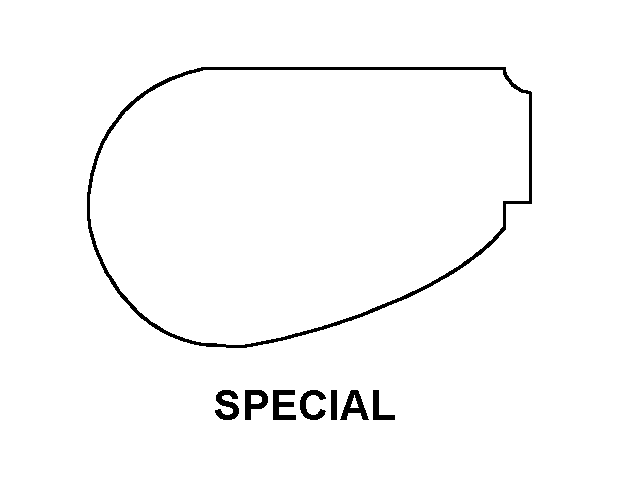

SPECIAL
CONVENTIONAL ANGLE
SINGLE BAR SADDLE BRIDGE
Cross Reference | NSN 6540-01-145-5209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HEBFD482050 | 92083 | HIS VISION INC |
Technical Data | NSN 6540-01-145-5209
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 8 SINGLE BAR SADDLE BRIDGE |
| LENS STYLE | SPECIAL |
| BRIDGE MATERIAL | CELLULOSE ACETATE |
| LENS RIM MATERIAL | CELLULOSE ACETATE |
| FRONT COLOR | BROWN |
| BRIDGE WIDTH | 24.0 MILLIMETERS |
| TEMPLE SECTION STYLE DESIGNATOR | CONVENTIONAL ANGLE |
| TEMPLE SECTION MATERIAL | CELLULOSE ACETATE |
| TEMPLE SECTION SURFACE TREATMENT | ANY ACCEPTABLE |
| TEMPLE CORE | INCLUDED |
| HEADBAND | NOT PROVIDED |
| CARRYING CASE | NOT PROVIDED |
| SPECIAL FEATURES | 5 BARREL HINGE; HALF EYE; SCREW 5305-00-926-5590 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FRAME SPECTACLE CELLULOSE ACETATE BROWN 48MM EYE 24MM BRIDGE |
