Part Details | VOLTMETER
6625-00-006-0828 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Alternate Parts: MR44W050DCVVR, MILM1030423, MIL-M-10304/23, 6625-00-006-0828, 00-006-0828, 6625000060828, 000060828
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUN 21, 1972 | 00-006-0828 | 16449 ( VOLTMETER ) |
REFERENCE DRAWINGS & PICTURES

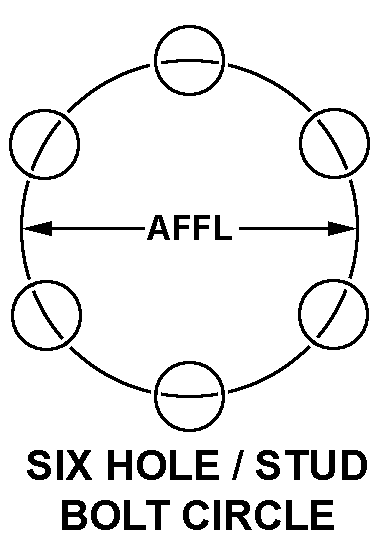

SIX HOLE/STUD BOLT CIRCLE
ROUND FLUSH MTG
Cross Reference | NSN 6625-00-006-0828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MR44W050DCVVR | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-M-10304/23 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 6625-00-006-0828
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| INDICATOR TYPE | DIAL W/POINTER |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG AND 2 THREADED STUD |
| SENSITIVITY RATING | 1.0 MILLIAMPERES |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 3000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 3.760 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 2.450 INCHES MAXIMUM |
| OVERALL DIAMETER | 4.600 INCHES MAXIMUM |
| OVERALL LENGTH | 2.850 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 SCREW AND 6 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | SIX HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 4.125 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL SEMIGLOSS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | COLD RESISTANT AND HEAT RESISTANT AND SHOCK RESISTANT AND SUBMERSIBLE AND VIBRATION RESISTANT AND WATERTIGHT |
| FURNISHED ITEMS AND QUANTITY | NUT 10; LOCKWASHER 8; SEAL 1 |
| FEATURES PROVIDED | LUMINOUS SCALE MARKING AND MAGNETIC SHIELD AND ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
| TEST DATA DOCUMENT | 81349-MIL-M-10304 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-M-10304 TO 23 GOVERNMENT SPECIFICATION |
| FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
