6625-00-006-4289 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Alternate Parts: 689901, 68990-1, 91124022, 9-1124-022, 91124022, 9-1124-022, 6625-00-006-4289, 00-006-4289, 6625000064289, 000064289
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUN 23, 1972 | 00-006-4289 | 16450 ( AMMETER ) |
REFERENCE DRAWINGS & PICTURES
TWO HOLE/STUD

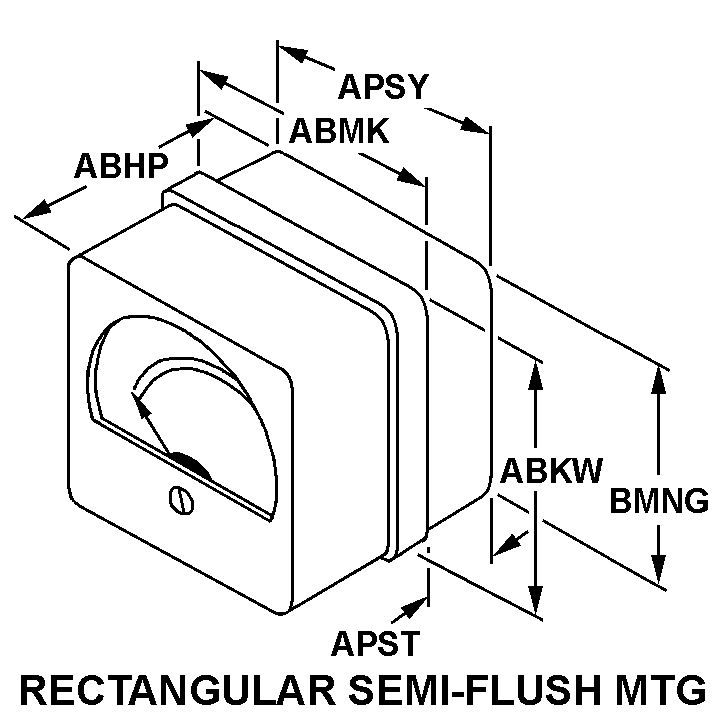

RECTANGULAR SEMI-FLUSH MTG
Cross Reference | NSN 6625-00-006-4289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68990-1 | 82340 | EDO LLC |
| 9-1124-022 | 81030 | PRIME TECHNOLOGY INCINTERNATIONAL INSTRUMENTS DIV |
| 9-1124-022 | 0BHF9 | PRIME TECHNOLOGY, LLC |
Technical Data | NSN 6625-00-006-4289
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER STUD |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 500.0 |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | RECTANGULAR SEMI-FLUSH MTG |
| METER BODY HEIGHT BEHIND MOUNTING FLANGE | 1.710 INCHES MAXIMUM |
| METER BODY WIDTH BEHIND MOUNTING FLANGE | 0.630 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.993 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.145 INCHES MAXIMUM |
| OVERALL LENGTH | 2.944 INCHES MAXIMUM |
| OVERALL WIDTH | 0.910 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| MOUNTING ARRANGEMENT STYLE | TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.306 INCHES NOMINAL |
