6625-00-009-2287 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Alternate Parts: PL629574, 6625-00-009-2287, 00-009-2287, 6625000092287, 000092287
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUL 26, 1972 | 00-009-2287 | 16450 ( AMMETER ) |
REFERENCE DRAWINGS & PICTURES
TWO HOLE/STUD

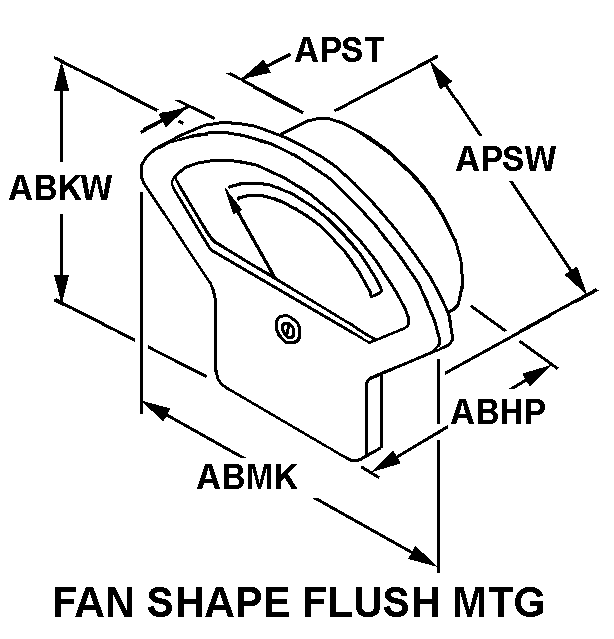

FAN SHAPE FLUSH MTG
Cross Reference | NSN 6625-00-009-2287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PL629574 | 24930 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR |
Technical Data | NSN 6625-00-009-2287
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| INDICATOR TYPE | DIAL W/POINTER |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SENSITIVITY RATING | 50.0 MILLIVOLTS |
| SCALE SELECTION METHOD | TERMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 2000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| STYLE DESIGNATOR | FAN SHAPE FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.312 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.093 INCHES NOMINAL |
| OVERALL HEIGHT | 3.031 INCHES NOMINAL |
| OVERALL LENGTH | 2.531 INCHES NOMINAL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP AND 2 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.156 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.437 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.212 INCHES NOMINAL |
| PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| MATERIAL | PLASTIC |
| SURFACE TREATMENT | PAINT |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | COLD RESISTANT AND DUST RESISTANT AND FUNGUS RESISTANT AND VIBRATION RESISTANT AND WATER RESISTANT |
| FURNISHED ITEMS AND QUANTITY | NUT 6; LOCKWASHER 4; SPRING 2; GASKET 1 |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL TEST FEATURES | COMPLIES WITH MIL-M-10304 |
| FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
