Part Details | LABORATORY IGNITION CRUCIBLE
6640-00-290-6791 A vessel with a flat base, straight or tapered sides, designed to contain substances that are heated or melted at high temperatures. It is used to obtain samples by drying.
Alternate Parts: 250SIZE2, 230SIZE2, 07955F, 07-955F, 27430, 27-430, 6640-00-290-6791, 00-290-6791, 6640002906791, 002906791
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-290-6791 | 12861 ( CRUCIBLE, IGNITION, LABORATORY ) |
REFERENCE DRAWINGS & PICTURES

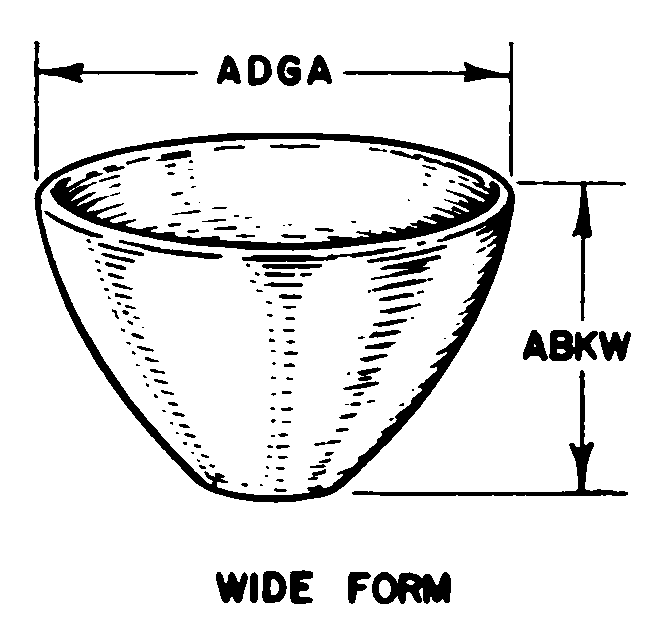

WIDE FORM
Cross Reference | NSN 6640-00-290-6791
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 250SIZE2 | 14566 | COORSTEK, INC.DBA COORSTEK AMAZING SOLUTIONS |
| 230SIZE2 | 14566 | COORSTEK, INC.DBA COORSTEK AMAZING SOLUTIONS |
| 07-955F | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 27-430 | 21519 | MANOSTAT CORP |
Technical Data | NSN 6640-00-290-6791
| Characteristic | Specifications |
|---|---|
| MATERIAL | PORCELAIN |
| GLAZE LOCATION | INSIDE AND OUTSIDE EXCEPT BOTTOM |
| STYLE DESIGNATOR | WIDE FORM |
| OVERALL HEIGHT | 35.00 MILLIMETERS MINIMUM AND 37.00 MILLIMETERS MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 57.00 MILLIMETERS MINIMUM AND 59.00 MILLIMETERS MAXIMUM |
| CAPACITY RATING | 50.000 MILLILITERS NOMINAL |
| PRIMARY CONTAINER TYPE | CX ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 5 SIZE |
