Part Details | OPTICAL INSTRUMENT PRISM
6650-00-155-3673 A transparent item with at least two polished plane surfaces inclined toward each other, designed for use in optical instruments to reflect and/or refract a beam of light. It may have one or more mirrored surfaces for greater reflection. Includes optical wedges used to divert paths of light by refraction, but to a lesser degree. See also BEAM SPLITTER, OPTICAL INSTRUMENT.
Alternate Parts: 384815PC4, 3000044, 6650-00-155-3673, 00-155-3673, 6650001553673, 001553673
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-155-3673 | 21879 ( PRISM, OPTICAL INSTRUMENT ) |
REFERENCE DRAWINGS & PICTURES

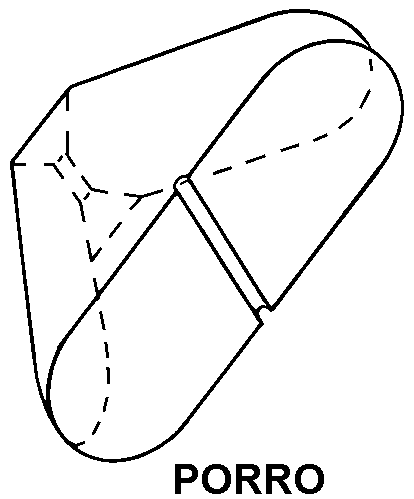

PORRO
Cross Reference | NSN 6650-00-155-3673
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 384815PC4 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 3000044 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 6650-00-155-3673
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PORRO |
| LIGHT DEVIATION | 180 DEG |
| FSC APPLICATION DATA | FIRE CONTROL TELESCOPE |
