Part Details | OPTICAL INSTRUMENT PRISM
6650-00-219-5825 A transparent item with at least two polished plane surfaces inclined toward each other, designed for use in optical instruments to reflect and/or refract a beam of light. It may have one or more mirrored surfaces for greater reflection. Includes optical wedges used to divert paths of light by refraction, but to a lesser degree. See also BEAM SPLITTER, OPTICAL INSTRUMENT.
Alternate Parts: 930812, 930-812, 930812, 930-812, 6650-00-219-5825, 00-219-5825, 6650002195825, 002195825
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-219-5825 | 21879 ( PRISM, OPTICAL INSTRUMENT ) |
REFERENCE DRAWINGS & PICTURES

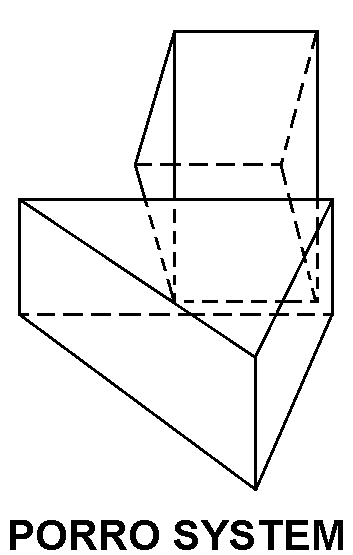

PORRO SYSTEM
Cross Reference | NSN 6650-00-219-5825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 930-812 | 80294 | BOURNS INSTRUMENTS INC |
| 930-812 | 11871 | RECON/OPTICAL, INC. |
Technical Data | NSN 6650-00-219-5825
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PORRO SYSTEM |
| LIGHT DEVIATION | 90 DEG |
| FSC APPLICATION DATA | TELESCOPE,T159,INTEGRATED W/FIRE CONTROL EQUIPMENT |
