Part Details | OPTICAL ELEMENT SPACER
6650-00-433-2349 A tubular shaped item designed to maintain a predetermined distance between optical elements, such as lenses, reticles, and the like. The bore may be straight, tapered or counterbored, and may have annular serrations to converge or diverge light rays. The surfaces, which mate with the optics, are usually chamfered, concave, and/or have a specified finish designation in the range of 1 to 125 microinches arithmetical average (AA). See also SPACER, SLEEVE and CELL, OPTICAL ELEMENT.
Alternate Parts: SCD6350542, SC-D-635054-2, 6650-00-433-2349, 00-433-2349, 6650004332349, 004332349
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUL 30, 1970 | 00-433-2349 | 22261 ( SPACER, OPTICAL ELEMENT ) |

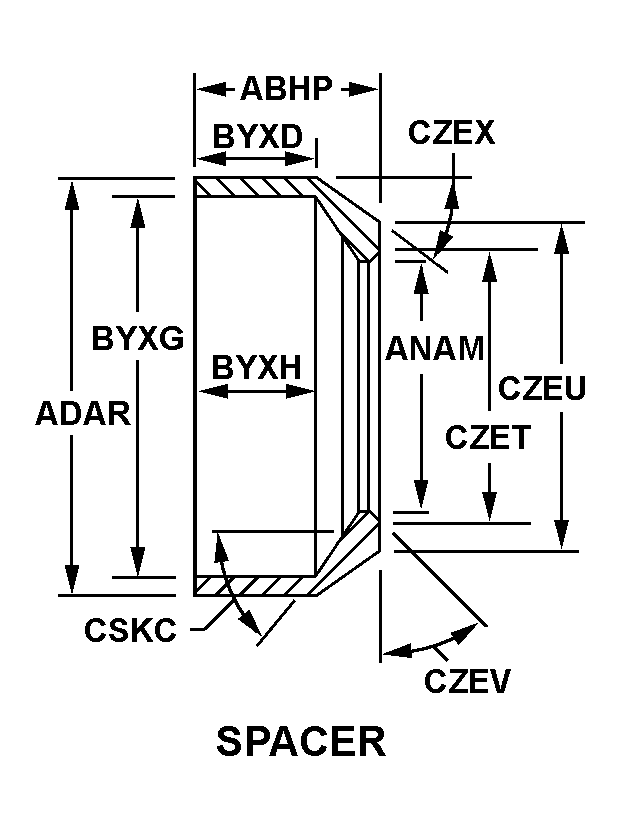

REFERENCE DRAWINGS & PICTURES
SPACER
Cross Reference | NSN 6650-00-433-2349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC-D-635054-2 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 6650-00-433-2349
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | SPACER |
| FSC APPLICATION DATA | NIGHT VISION EQUIP.,EMITTED AND REFLECTED RADIATION |
