Part Details | SELF-INDICATING THERMOMETER
6685-00-043-4467 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.
Alternate Parts: 21795, 6685-00-043-4467, 00-043-4467, 6685000434467, 000434467
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1961 | 00-043-4467 | 42787 ( THERMOMETER, SELF-INDICATING ) |

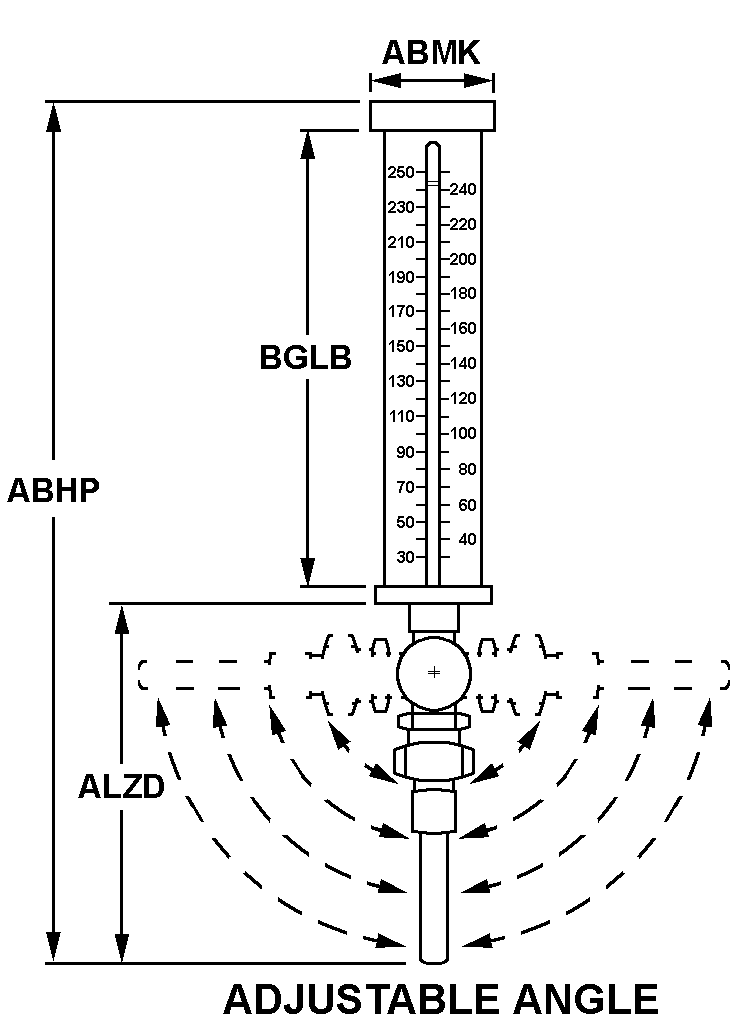

REFERENCE DRAWINGS & PICTURES
ADJUSTABLE ANGLE
Cross Reference | NSN 6685-00-043-4467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21795 | 59310 | ABB KENT-TAYLOR INC |
Technical Data | NSN 6685-00-043-4467
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | FUSED STEM |
| SCALE MEASUREMENT RANGE | +30.000 TO +220.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | 4 ADJUSTABLE ANGLE |
| OVERALL DIAMETER | 6.0 MILLIMETERS MINIMUM AND 7.0 MILLIMETERS MAXIMUM |
| OVERALL LENGTH | 16.000 INCHES NOMINAL |
| ACTUATING MEDIUM | MERCURY |
| DESIGN TYPE | FLUCTUATING |
| SECURING DEVICE TYPE | RING |
| FEATURES PROVIDED | EXPANSION CHAMBER |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| SCALE SMALLEST INCREMENT | 1.0 DEG FAHRENHEIT |
