Part Details | CARD HUMIDITY INDICATOR
6685-00-052-1865 An item which uses the changing color of a desiccant in the presence of moisture to indicate humidity. A number of desiccants are applied in the form of squares, circles and the like, to absorbent paper. Each desiccant spot is generally labeled with a relative humidity value in percentage, an instruction, or some other appropriate legend.
Alternate Parts: TA356HC2345S, TA356-HC-2345S, 21562345S, 2156-2345S, 10382218, 8881094, 8864904, 8034638, 6685-00-052-1865, 00-052-1865, 6685000521865, 000521865
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1961 | 00-052-1865 | 13474 ( INDICATOR, HUMIDITY, CARD ) |
REFERENCE DRAWINGS & PICTURES

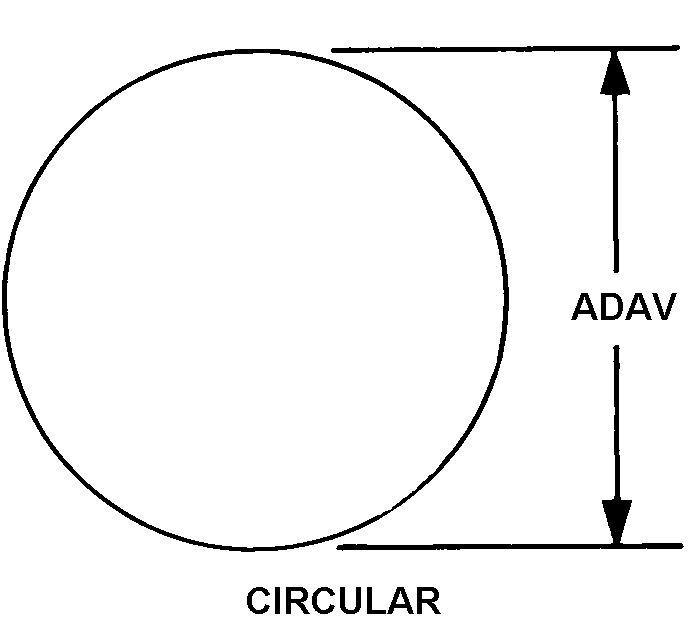

CIRCULAR
Cross Reference | NSN 6685-00-052-1865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TA356-HC-2345S | 08992 | AGM CONTAINER CONTROLS INC.DBA A G M |
| 2156-2345S | 00334 | CLARIANT CORPORATION |
| 10382218 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
| 8881094 | 19203 | PICATINNY ARSENAL |
| 8864904 | 19203 | PICATINNY ARSENAL |
| 8034638 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 6685-00-052-1865
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CIRCULAR |
| OVERALL DIAMETER | 0.800 INCHES NOMINAL |
| DESICCANT SPOT HUMIDITY PERCENTAGE | B20.0$$B30.0$$B40.0$$B50.0 |
| END ITEM IDENTIFICATION | TORPEDO SYSTEM MK-46; TANK,SHERIDAN M-551; CHAPARRAL/VULCAN AD5; MISSILE,STINGER; MISSILE,PERSHING |
