Part Details | ELECTRICAL RESISTANCE TEMPERATURE INDICATOR
6685-00-056-9838 An item that designates temperature by means of measuring the electrical resistance of a sensitive bulb whose resistance varies with a change of temperature. Does not include resistance bulb.
Alternate Parts: MEL905781, MEL90578-1, 2234, 223-4, 6685-00-056-9838, 00-056-9838, 6685000569838, 000569838
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAY 30, 1967 | 00-056-9838 | 03380 ( INDICATOR, TEMPERATURE, ELECTRICAL RESISTANCE ) |
REFERENCE DRAWINGS & PICTURES

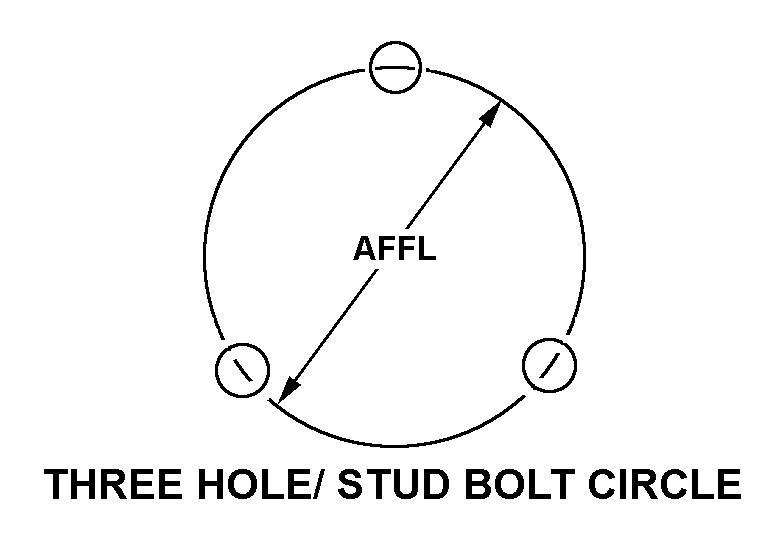

THREE HOLE/STUD BOLT CIRCLE
Cross Reference | NSN 6685-00-056-9838
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MEL90578-1 | 90598 | ENGINEERED AIR SYSTEMS INC.DBA DRS SUSTAINMENT SYSTEMS |
| 223-4 | 33005 | JEWELL INSTRUMENTS, LLCDBA MODUTEC |
Technical Data | NSN 6685-00-056-9838
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 3 |
| SCALE MARKING AND SURFACE FINISH | NUMERALS NONLUMINOUS AND LINED INCREMENTS NONLUMINOUS |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 15.0 VOLTS NOMINAL |
| CONTACT QUANTITY | 3 |
| CONTACT TYPE | THREADED STUD |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PANEL AND 3 STUD |
| MOUNTING HOLE DIAMETER | 0.112 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | THREE HOLE/STUD BOLT CIRCLE |
| LENGTH | 1.730 INCHES NOMINAL |
| WIDTH | 2.702 INCHES NOMINAL |
| HEIGHT | 2.702 INCHES NOMINAL |
| SPECIAL FEATURES | SCALE CALIBRATION:2 DEG;SCALE NAME:WATER TEMPERATURE;TERMINAL STUD THD SIZE:10-32;ENCASEMENT FEATURE:INCLUDED;PANEL MOUNTED BODY SIZE:2.180 IN.NOM;NUMERALS AND LINED INCREMENTS:BLACK;MTG THDS PER IN.:40;STUDS SPACED 120 DEG A PART ON 1.220 IN.RADIUS;MTG THD SERIES:NC-2A |
