Part Details | SELF-INDICATING THERMOMETER
6685-00-080-7119 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.
Alternate Parts: 9VS35, 9VS3-5, 6685-00-080-7119, 00-080-7119, 6685000807119, 000807119
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-080-7119 | 42787 ( THERMOMETER, SELF-INDICATING ) |
REFERENCE DRAWINGS & PICTURES

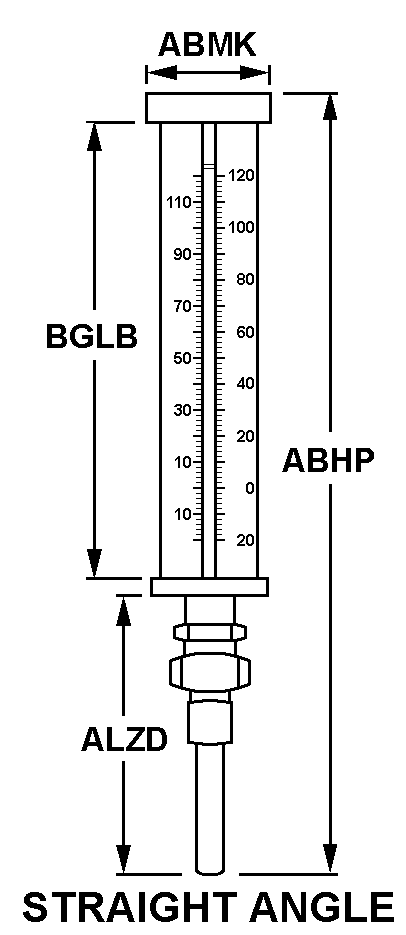

STRAIGHT ANGLE
Cross Reference | NSN 6685-00-080-7119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9VS3-5 | 14449 | WEISS INSTRUMENTS, INC. |
Technical Data | NSN 6685-00-080-7119
| Characteristic | Specifications |
|---|---|
| SCALE MEASUREMENT RANGE | +30.000 TO +240.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | STRAIGHT ANGLE |
| STEM LENGTH | 4.250 INCHES NOMINAL |
| BULB TIP OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 9.000 INCHES NOMINAL |
| TIP LENGTH | 2.500 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 3/4 IN. NPT |
| INTERNAL THREAD SIZE | 3/4 IN. NPT |
| ACTUATING MEDIUM | MERCURY |
| DESIGN TYPE | FLUCTUATING |
| FEATURES PROVIDED | PROTECTIVE GLASS/PLASTIC |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY REPLIES TO REQUIREMENTS FOR SCALE READING DATA,MTG DATA,AND OVERALL LENGTH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| SCALE SMALLEST INCREMENT | 2.0 DEG CELSIUS |
