Part Details | SELF-INDICATING THERMOMETER
6685-00-248-3102 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.
Alternate Parts: 24656, 2465-6, 6685-00-248-3102, 00-248-3102, 6685002483102, 002483102
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUN 15, 1973 | 00-248-3102 | 42787 ( THERMOMETER, SELF-INDICATING ) |
REFERENCE DRAWINGS & PICTURES

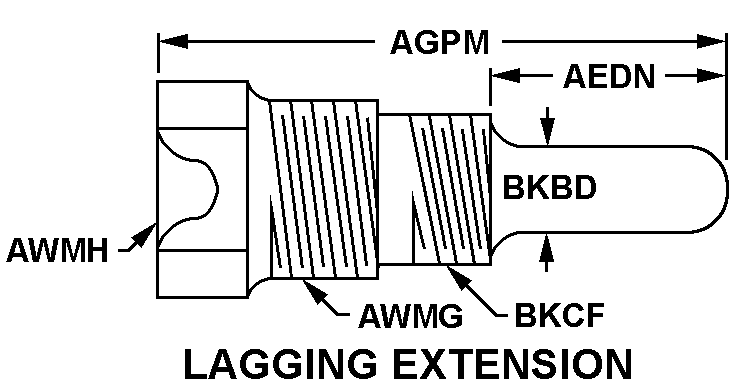

LAGGING EXTENSION
ADJUSTABLE ANGLE
Cross Reference | NSN 6685-00-248-3102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2465-6 | 96116 | GE RUSKA INSTRUMENT CORPORATIONDIV GE SENSING SOLUTIONS INC |
Technical Data | NSN 6685-00-248-3102
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | ENCLOSED GLASS |
| SCALE MEASUREMENT RANGE | +10.000 TO +40.000 DEG CELSIUS |
| STYLE DESIGNATOR | 5 ADJUSTABLE ANGLE |
| SEPARABLE SOCKET STYLE | LAGGING EXTENSION |
| ACTUATING MEDIUM | AIR |
| DESIGN TYPE | FLUCTUATING |
| SPECIAL FEATURES | W/PROTECTIVE TUBE |
