6760-00-490-3033 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: ST243F1T0F11ANDS5218F2, 6760-00-490-3033, 00-490-3033, 6760004903033, 004903033
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 67 | SEP 19, 1969 | 00-490-3033 | 17533 ( CRANK, HAND ) |

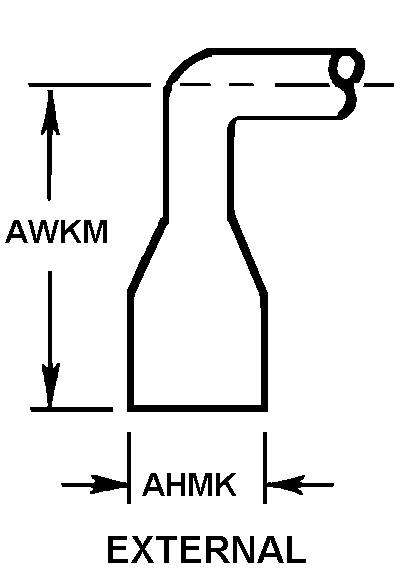

REFERENCE DRAWINGS & PICTURES
EXTERNAL
STRAIGHT
SQUARE
Cross Reference | NSN 6760-00-490-3033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ST243F1T0F11ANDS5218F2 | 06650 | BELL AND HOWELL PHILLIPSBURG COCORPORATE OFFICES |
Technical Data | NSN 6760-00-490-3033
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, ASTM A108, GRADE 1020 OVERALL |
| SURFACE TREATMENT AND LOCATION | CHEMICAL OVERALL |
| COLOR AND LOCATION | BLACK OVERALL |
| ARM STYLE | STRAIGHT |
| CRANK THROW LENGTH | 4.325 INCHES NOMINAL |
| DRIVE END STYLE | EXTERNAL |
| LENGTH FROM END TO ARM CENTER | 2.562 INCHES NOMINAL |
| DRIVE FACILITY STYLE | SQUARE |
| DRIVE WIDTH | 0.275 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 7.125 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
