Part Details | BORESIGHTING TARGET
6920-01-495-7183 A paper, plastic and/or metal item of square or rectangular shape designed as an aiming point to be used in bore sighting a gun to bring the axis of the barrel of a spotting pistol, spotting rifle, subcaliber rifle and/or telescope sight(s) into coaxial alignment with the center line of a cannon tube or artillery trainer barrel. It usually consists of a series of quartered circles printed on a white background with alternate quadrants printed in black. Crosses, center lines and other appropiate sighting marks may also be included.
Alternate Parts: 16103728021, 16103728-021, 6920-01-495-7183, 01-495-7183, 6920014957183, 014957183
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 69 | MAR 22, 2002 | 01-495-7183 | 22485 ( TARGET, BORESIGHTING ) |

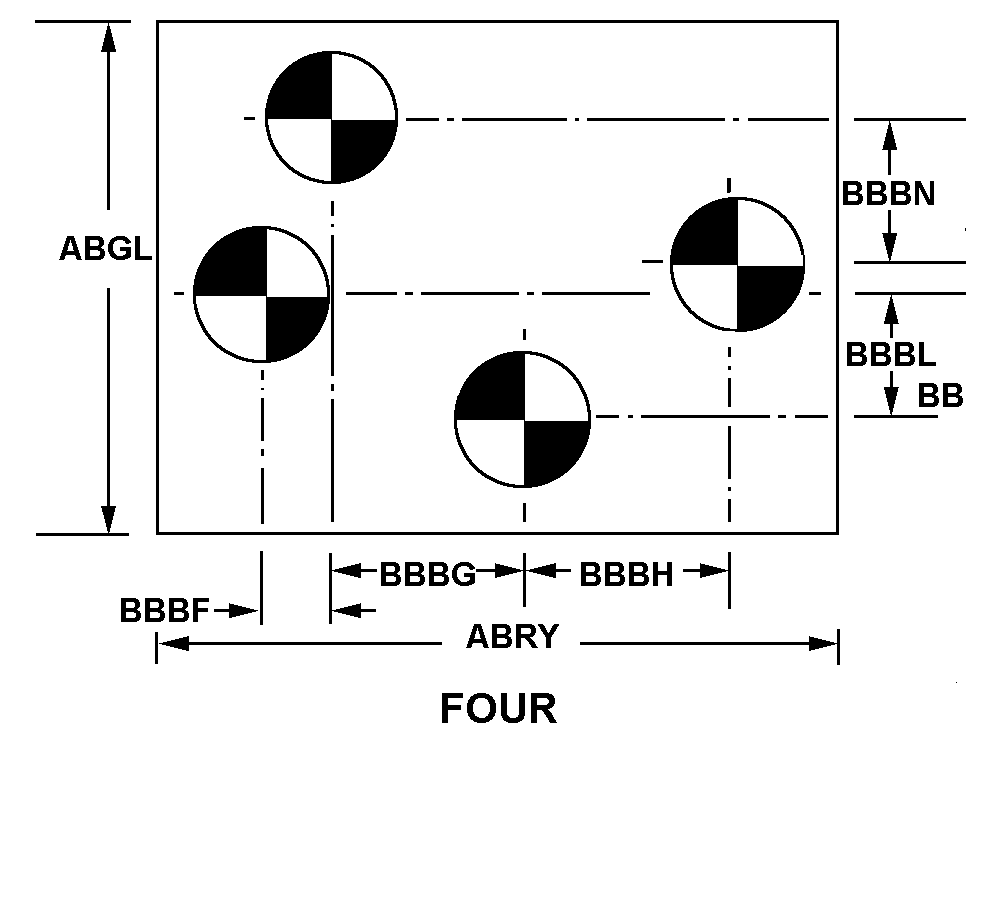

REFERENCE DRAWINGS & PICTURES
FOUR
Cross Reference | NSN 6920-01-495-7183
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16103728-021 | 13160 | GENERAL DYNAMICS LAND SYSTEMS INC.DBA WOODBRIDGE TECHNICAL CENTER |
Technical Data | NSN 6920-01-495-7183
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FOUR |
| WIDTH | 22.500 INCHES NOMINAL |
| LENGTH | 39.000 INCHES NOMINAL |
| SPECIAL FEATURES | TARGET PANEL ASSEMBLY; ALUMINUM ALLOY, .75 INCH THICK |
