Part Details | DIESEL BURNER STOVE
7310-01-452-8137 A portable or fixed apparatus that burns diesel as a fuel to provide heat. See also STOVE, GASOLINE BURNER and STOVE, KEROSENE BURNER.
Alternate Parts: MS0001, MILPRF44485, MIL-PRF-44485, 7310-01-452-8137, 01-452-8137, 7310014528137, 014528137
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 73 | FEB 09, 1998 | 01-452-8137 | 39103 ( STOVE, DIESEL BURNER ) |
REFERENCE DRAWINGS & PICTURES

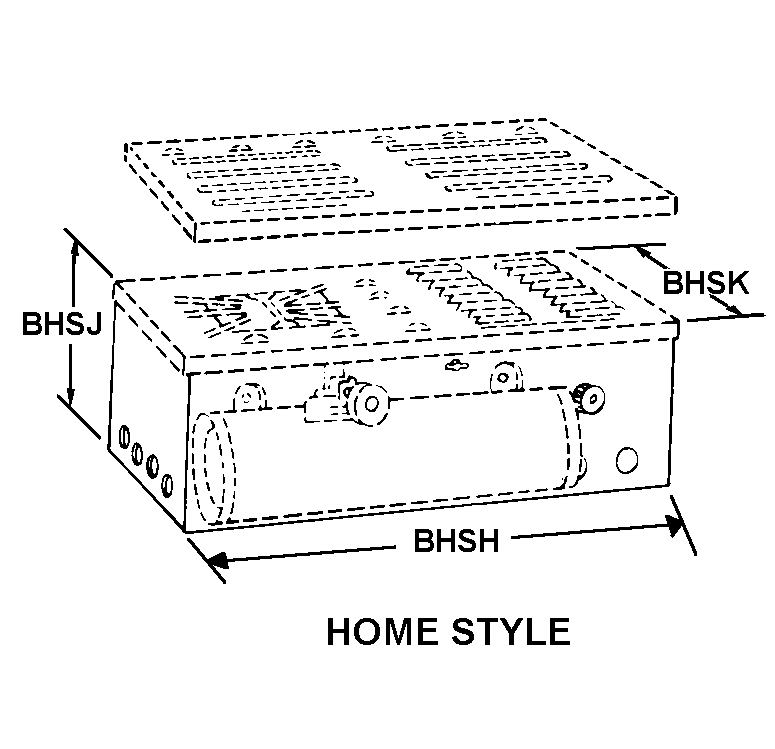

HOME STYLE
Cross Reference | NSN 7310-01-452-8137
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS0001 | 3AD06 | MARINE CANADA ACQUISITION INCDBA SEASTAR SOLUTIONS |
| MIL-PRF-44485 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 7310-01-452-8137
| Characteristic | Specifications |
|---|---|
| STOVE STYLE | HOME STYLE |
| STOVE WIDTH | 19.000 INCHES NOMINAL |
| STOVE HEIGHT | 9.750 INCHES NOMINAL |
| STOVE DEPTH | 23.000 INCHES NOMINAL |
| HEAT DELIVERY RATE IN BTU PER HOUR | 52000.0 |
| INTEGRAL FUEL TANK CAPACITY | 2.000 GALLONS |
| PRESSURE GAGE | NOT INCLUDED |
| SEPARATE HINGED WINDSHIELD | NOT PROVIDED |
| SEPARATE CUP LIKE BURNER COVER | NOT PROVIDED |
| CARRYING CASE | NOT PROVIDED |
| SHAPE | RECTANGULAR |
| INDEPENDENT FOLDING GRATE | NOT PROVIDED |
| SPECIAL FEATURES | DIRECT REPLACEMENT FOR THE M2 BURNER, PUSH BUTTON OPERATION, LIGHTS IN PLACE WITH ELECTRONIC IGNITION, FUELS IN PLACE, OPERATIONAL IN ENVIRONMENTS FROM NEGATIVE 25 TO 120 DEGREES F; PROVIDES FOOD SERVICE PERSONNEL THE ABILITY TO SAFELY OPERATE FIELD KITCHENS ON BATTLEFIELD FUELS (JP-8); ARMY TM 10-7310-281-13&P. |
