Part Details | IDENTIFICATION PLATE
9905-00-113-8305 An item which is rigid or semi-rigid, generally flat and smooth designed to be attached to an item and provides data such as name/nomenclature, weight, tire pressure, dimensional data and the like. See also MARKER,IDENTIFICATION; PLATE,DESIGNATION; PLATE,INSTRUCTION; PLATE SET,IDENTIFICATION; and TAG,MARKER. Excludes LABEL.
Alternate Parts: 6510111003102, 65101-11003-102, 9905-00-113-8305, 00-113-8305, 9905001138305, 001138305
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | SEP 06, 1968 | 00-113-8305 | 00155 ( PLATE, IDENTIFICATION ) |
REFERENCE DRAWINGS & PICTURES

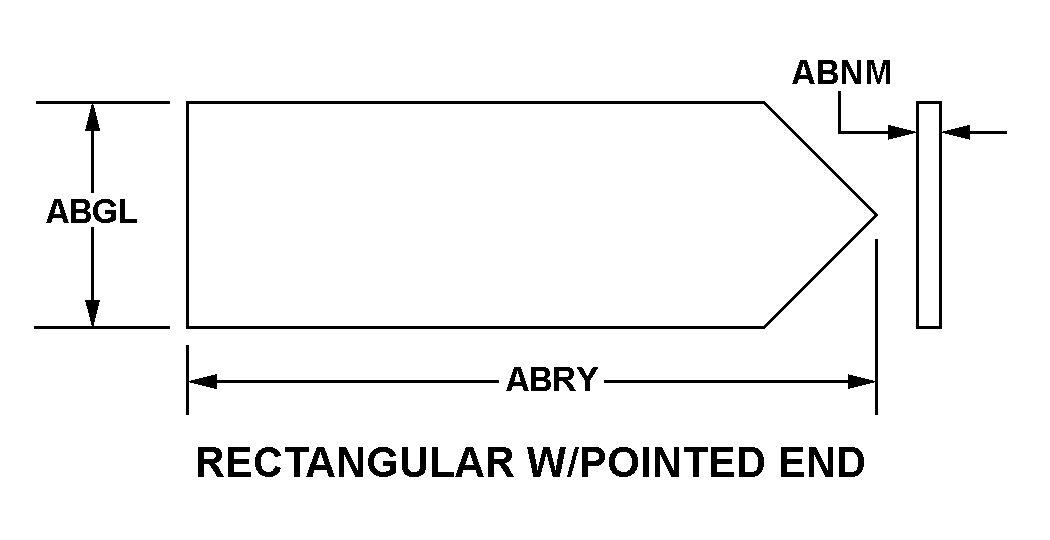

RECTANGULAR W/POINTED END
Cross Reference | NSN 9905-00-113-8305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65101-11003-102 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 9905-00-113-8305
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| BASIC SHAPE STYLE | RECTANGULAR W/POINTED END |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-A-148-CANCELLED MIL SPEC SINGLE MATERIAL RESPONSE |
| WIDTH | 0.250 INCHES NOMINAL |
| THICKNESS | 0.003 INCHES NOMINAL |
| LENGTH | 4.580 INCHES NOMINAL |
